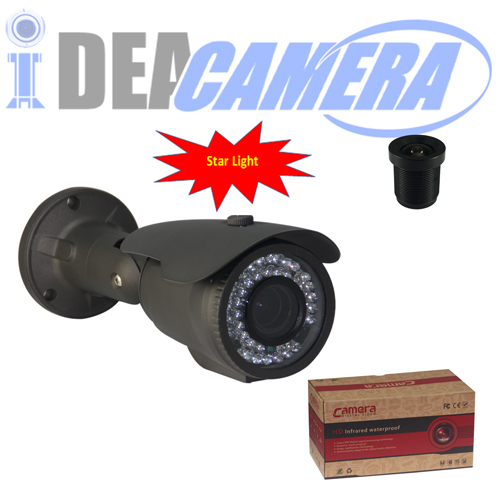

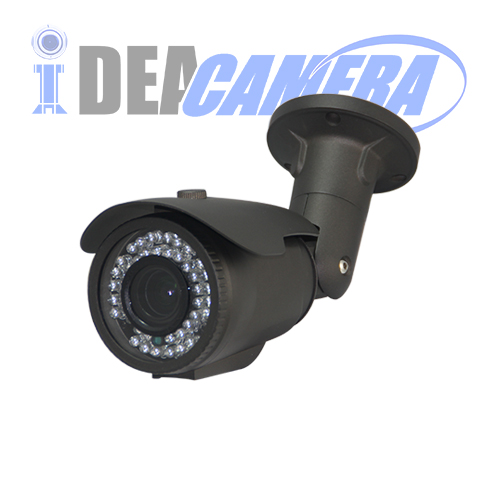

Starlight IP Camera with Audio In,Internal POE,H.265 1920*1080P,VSS Mobile App,P2P

2019/1/14 14:51:35, Visits:
Product Model: RC-BF75M-2SW-P-A
FOB Price: US$43.41-US$45.41
Min. Order: 1pc
Product Brand: IdeaCamera
OEM/ODM: Support
Warranty: 2 Years
Country of Origin: China
Certificate: CE,FCC,ROHS
PDF:

Inquire Now >

Model: RC-BF75M-2SW-P-A

Key features:

3.0-megapixel Starlight 3.6mm HD Fixed Lens (4, 6,8mm optional).

42pieces IR LEDs, 40 meters of IR distance.

Dark Gray casing with strong bracket.

Normal network video cable.



Product characteristics:

1/2.8” CMOS Sensor (Sony IMX307+Hi3516C V300).

Support H.264/H.265/H.265+ Video compression.

Support Starlight (Day and night all color).

Standard 38*38 single board, Easy to install CCTV Camera.

Support smart IR (Day and night auto switch).

Max video resolution: 1920*1080@25/30fps.

Support 1ch audio input, 1ch audio output, realize two-way phonetic dialogue.

Support 1ch alarm input.

Support 1 USB reserve interface.

Support 1ch CVBS output.

Support three-bit stream.

Support 3D noise reduction and digital WDR.

Support private network penetration and cross browser access.

Mobile APP name: VSS Mobile.

Support POE power supply.



Product Advantages:

Offer 2-years product warranties.

Logistics convenient.

OEM/ODM.

CCC/CE/FCC Certified.

Strict product quality control.

Efficiently working with almost NVR.

Lower price.

6-8 working day per order.



Product applications:

This is the best product of safety field. It and hard disk video recorderscablepower supplydisplayetc. Constitute a complete security system. Tts application is more extensive. Such as homesfactorieshighwaysoffice buildinggardencommunity, or a large public places, etc.


2MP   WD&SL Single-Boards IP Camera Module

Product   model

RC-BF75M-2SW-P-A

System   Structure

DSP

Embedded RTOS, DSP (Hi3516C V300)

Sensor

1/2.8" CMOS sensor (SONY IMX307)

Video   Encoding

Video Encoding

H.265/

H.264High Profile/Main Profile/

Base Line Profile/ MJPEG

H.265+/

H.264High Profile+/Main Profile+/

Base Line Profile+

Maximum Image Output

Main stream1920*1080@25/30fps;

Auxiliary stream 1: 704*576@25/30fps

Auxiliary stream 2: 1280*720@14/3fps

Streaming transmission

Three stream

Video Bite rate

32Kbps~8MKbps

Image   Enhancement

Min. illumination

Color0.1Lux@F1.2AGC ON);

black and white0.01Lux@F1.2AGC ON

Electronic shutter

Auto1/3 to 1/10000

Day/Night switch

color/B&W/Light sensitive switch/Mixed mode   switch

white balance

Auto / Lock white balance / fluorescent lamp   /filament lamp /fluorescent lamp /HM

DNR

2D and 3D DNR

WDR

Support 120DB Ture WDR

Video Adjust

Sharpness, Brightness, Saturation, Contrast, Chroma   adjustable

image model

Transparent /real

color pattern

Standard /gorgeous

Corridor pattern

support

backlight compensation

support

FLC

support

penetrating fog

support

image   distortion rectifying

support

Vernier focusing

support-Z model support

All electric rectifier

support-Z model support

Smart IR

support

Interfaces

Signal interface

one photosensitive resistance signal interface,

one IR_CUT drive interface

support photo resistance signal links to IR-CUT   and IR light

ICR driving voltage

5V

Smart IR

One port

Reset interface

One port

Audio interface

One audio in; One audio out

Alarm interface

One alarm in; One alarm out

electric zoom interface

One port-Z model support

TTL interface

One port

CVBS interface

One port

Power interface

One DC12V power input

USB interface

One Port

POE interface

One Extended Interface

Network light interface

One Port

Network interface

One RJ45 10/100M Port

Functions

Motion detection

Multiple detection zones, variable sensitivity   levels

Capture function

JPEGcapture resolution is the max coding resolution

Security

Password protection and water marker

OSD

Support Channel Name and Time

Support custom character superposition

Support image overlay

storage

Support FTP storage

Smart function

TripwireRegional invasionItems stolenItems moveDensity DetectionNumber StatThrough the fence Wandering   detection Retrograde motion detection Face   Capture

Smart alarm

Network abnormal, cover alarm etc.

Mobile client

VSSMOBILE for both iPhone and Android system   phone

Protocol support

TCP/IPUDPHTTPIGMP ICMPDHCPRTP/RTSPDNSDDNSFTPNTPPPPOEUPNPSMTPSNMP

Reverse the registered

support

Interface protocol

ONVIF2.6/CGI/GB28181

General

Power Supply

DC12V/POE(-P)

Power Consumption

<1.5W (without infrared lamp board)

Lightning Protection

Power, network, POE all lightning protection,

meets with standard GB/T17626.5and   IEC61000-4-5

IR_CUT pitch

20mm

Size

38*38mmSingle Board
