| Product Model: | Smart fingerprint Lock -109 |
| FOB Price: | US$51-US$54 |
| Min. Order: | 1pc |
| Product Brand: | IdeaCamera |
| OEM/ODM: | Support |
| Warranty: | 2 Years |
| Country of Origin: | China |
| Certificate: | CE,FCC,ROHS |
| PDF: |  |
Model: Smart fingerprint Lock -109
Key features:

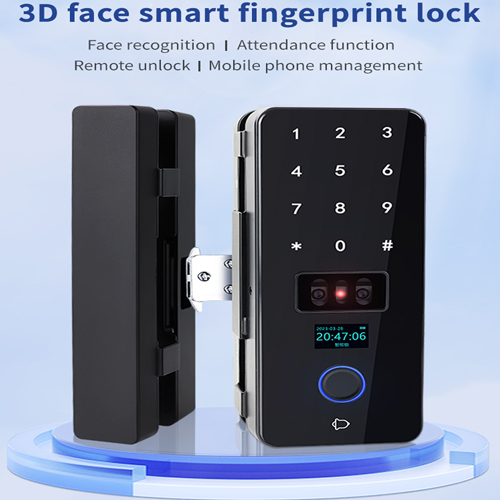

3D face recognition;
Mobile phone management: haha app/tuya app(optional);
Installation left and right;
Bluetooth-compatible;
Attendance record check;
Multiple unlock: Fingerprint, Password, Face recognition, IC Card, Remote Control(optional), WeChat Mini Program, haha APP, Tuya APP (optional), Temporary Password, Mechanical Key;
Frameless/Framed Self applicable;
Double hock latch fixed;
The door locks automatically;

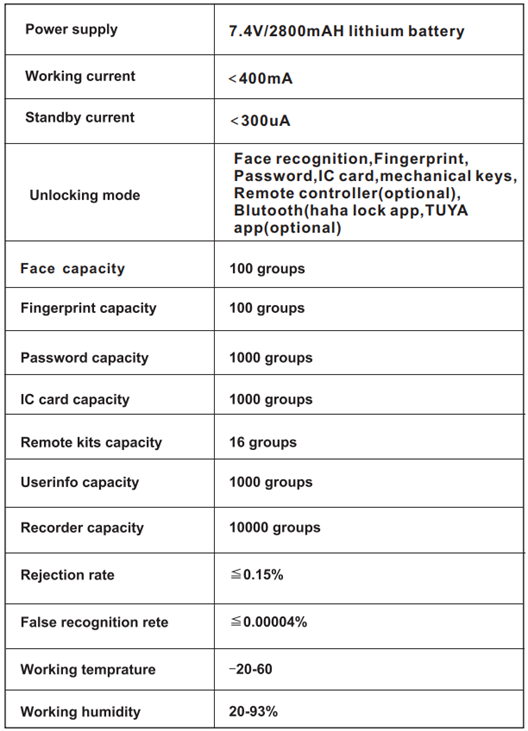

Power Supply: Built-in 7V/2800mah Lithium Battery/USB DC5V;
Easy installation, Easy use;
New Function
Gearbox clutch protection, Free of dismantling installation, Double leading technology plus simpler installation and superior quality.
haha lock function
Open/close lock
Short press the round icon to open the lock and long press the round icon to close the lock.
User management
Chick adds user icon and select admistrator or common user enter interface, login password, fingerprint, IC card and setting valid time. and all user can be deleted.
Click read user data to inquire all riser information.
Inquire recorder
Inquire unlock recorder and create/export attendance sheet.
Time setting
Synchronization time between lock and mobile.
system setting
Bluetooth radio: open/close Bluetooth radio Language: change language between 9 languages. Volume: adjust the volume from level 0 to 4
Delay time of locking: adjust delay time of self-locking from 3sec to 15sec after close the door.
Delay time of door magnetic: adjust delay time of self-locking from 0sec to 5sec after unlock but the door didn't open.
Remote controller setting: add or delete remote controller. Reset connection password: Reset the password for connecting the lock to the mobile.
Restore factory setting: restore to original state. Reboot Device： restart the lock.
TUYA smart: networking by tuya app to unlock in long-distance.
Temporary password
Setting temporary password to unlock in long-distance.
Firmware upgrade
Upgrade system version in line.
Share permission
Share admistrator to others by share permission.
