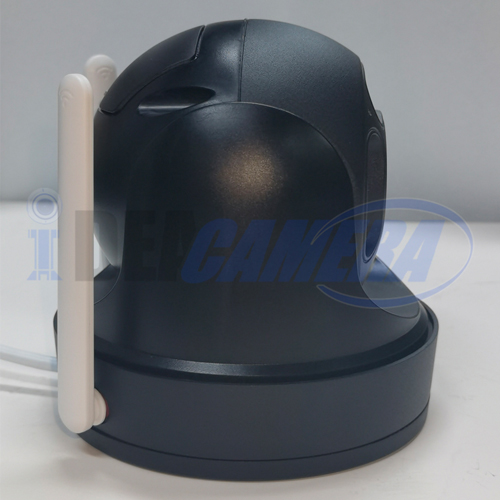

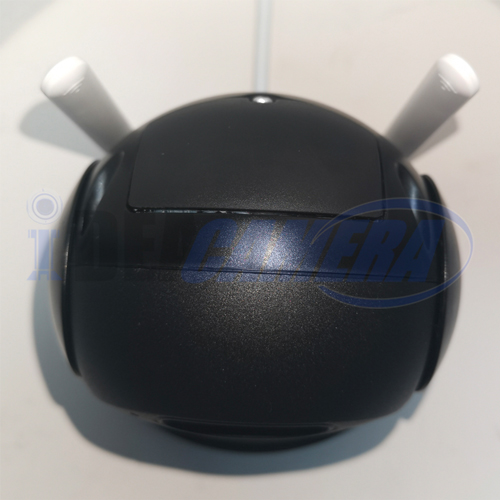

8.0MP/4K 3" Metal IP POE Double Light PTZ Dome Camera,5X Zoom Lens.

2023/12/8 11:21:39, Visits:
Product Model: RS-IP308MP-5X
FOB Price: US$62-US$65
Min. Order: 1pc
Product Brand: IdeaCamera
OEM/ODM: Support
Warranty: 2 Years
Country of Origin: China
Certificate: CE,FCC,ROSH
PDF:

Inquire Now >

1. System Function

3-inch Mini speed dome, beautiful appearance; Friendly quick install structure design, easier building.

Adopt high-performance sensor, H.265+/H.265/H.264 compression format, resolution achieve 3840*2160.

Support ONVIF protocol.

Support English IE interface and operation tip’s function, user friendly interface.

Protection grade: IP66.

2.  Infrared function

12pcs array night vision led, double light, IR Distance 30-50M,Full color night vision distance:20-30M,minimum Illumination0 Lux

The constant current circuit design, Infrared ages can be reaching 30 thousand hours.

3.  IP Zoom camera function

Adopt high-performance DSP platform, stable and reliable performance.

Effective pixels 8.0 million pixels,4K/3840*2160.

Support auto focus, AWB and BLC.

Support digital WDR function.

Support two-way audio function, G.711 compression, support audio-video synchronization.

Built-in high sensitivity microphone and high-power horn, support two-way voice intercom, humanoid

recognition voice to broadcast the alert.

5x optical zoom (optional).

Support POE power supply,802.3af/802.3at.

4. IP Network function

Support Ethernet remote control.

You can view real-time image and control PTZ rotation through IE browser, PC Client software, and NVR.

Support multi-levels of user rights management, support for authorized users and passwords, support HTTPS encryption and network access control.

Support H.265+/H.265/H.264 compression format, dual stream output 5MP+D1

Support P2P mobile phone remote, view real-time images and PTZ control.


WEB configure, real time recording transmission and playback, Free client software supported,

SDK for customer software development.

Support multi-protocols: IPv4, HTTP, HTTPS, FTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP,UDP/IP, DHCP, etc.

5. PTZ Control Function

Horizontal rotation 355°, tilt rotation 90°, control speed 40°/s

Support presets, automatic cruise routes, left and right limit scan,1 auto level scan, Idle running functions.


Model Number

RS-IP308MP-5X

Camera

Image Sensor:

1/2.8" SONY CMOS



Effective Pixels:

8.0MP   pixels3840*2160H.265+/H.265/H.264

Focal   Length:

5x optical zoom

Min. Illumination:

Color: 0.005Lux@   (F1.6, AGC ON), B/W: 0.001Lux@ (F1.6, AGC ON)


0Lux with IR

White Balance:

Auto/Manual

AGC:

Auto/Manual

Focus Mode:

Auto/Manual/Semiauto

DNR

3D/2D



Back light Compensation:

ON/OFF

DWDR:

Support, 0-255



S/N Ratio:

50dB

Pan/Tilt

Pan / Tilt Range:

Pan: 355°   Continuous Rotation; Tilt: 0° ~ 90°

Rotation Speed:

Rotation Speed: 0.5-40°   /s

Proportional Zoom:

support

IP Network function

Net Interface

RJ45 Ethernet interface, Support 10M/100M

Image Compression:

H.265+/H.265/H.264

Dual Rate

8MP+D1

Audio(optional)

G.711 compression

Network Protocols:

IPv4, HTTP,HTTPS,FTP,UPnP,   DNS,DDNS,NTP,RTSP, TCP/IP, UDP/IP,DHCP,etc.

Client

Support

ONVIF

support Onvif Protocol

POE

Support,802.3af/802.3at

Business Function

Support WEB, real-time video transmission; motion   detection and Human form detection

IR Function

  IR Lamp

  12pcs array night vision LED

  IR Distance

  30-50M

Full color night vision distance

  20-30M

  Smart night vision mode

    Intelligent dual light/infrared/Full   color

General

Protocols:

Pelco-P, Pelco-D, self-adaptive

Working Temperature:

 -20°C~65°C

Humidity:

≤90%, non-condensing

Waterproof grade:

 IP66

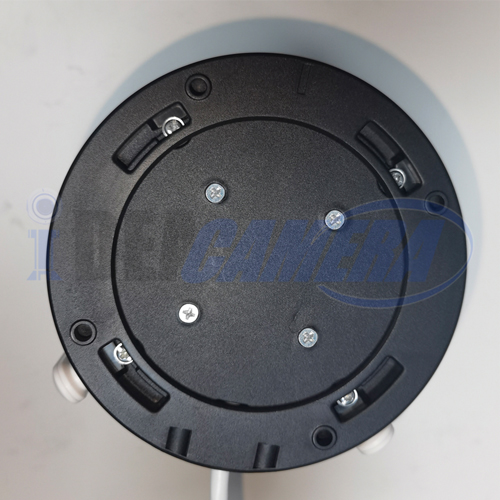

Mount Option:

Ceiling mount, Wall mount

Power:

DC12V/2A (±10%), ≤6W

Accessories:

Installation   manual, accessories bag
